D-Lite Wave
The D-Lite WaveThe popular design with the translucent model allows natural light while effectively reducing heat and reflecting UV. Meanwhile, the opaque model protects various areas of your home from sunlight and heat by 100%. The D-Lite wave canopy is made from GRP (Glass Reinforced Polyester), a high-quality material exclusively copyright by Ampelite Australia. The translucent model allows natural light to flow into your home or building, while the opaque model provides shade for various areas around the home. The D-Lite wave is designed to minimize the slope, effectively preventing leaks, modern appearance and durability. It meets all functional needs, making it ideal for residential buildings, front yard, garage, swimming pool, or any other areas where a modern look is desired.
The D-Lite Wave canopy is made from GRP (Glass Reinforced Polyester), a high-quality material
exclusively copyright by Ampelite Australia. The translucent model allows natural light to flow into your home or building, while the opaque model provides shade for various areas around the home. The D-Lite wave is designed to minimize the slope, effectively preventing leaks, modern appearance and durability. It meets all functional needs, making it ideal for residential buildings, front yard, garage, swimming pool, or any other areas where a modern look is desired.
Sunlight Protection and Heat Up to 100%
UV Reflection up to 99%
D-LiteD-Lite Wave
There are seven color available to complement your home: five colors for the translucent model—Crystal Green, Sea Blue, Opal, Bronze, and Pearl Green—and two colors for the opaque model—Alloy Grey and Dark Grey.
Choosing the right model to meet functional applications, Opaque model is ideal for areas that require shade, need to control temperatures. It is well-suited for swimming pools, garage, or for creating shaded areas in front of the house. Translucent model filters natural light, it is perfect for laundry areas, or a relaxing corner that provides a tranquil, in the shade area while still allowing natural light to brighten the space.
The popular design with the translucent model allows natural light while effectively reducing heat and reflecting UV. Meanwhile, the opaque model protects various areas of your home from sunlight and heat by 100%
There are seven color available to complement your home: five colors for the translucent model—Crystal Green, Sea Blue, Opal, Bronze, and Pearl Green—and two colors for the opaque model—Alloy Grey and Dark Grey.
Choosing the right model to meet functional applications, Opaque model is ideal for areas that require shade, need to control temperatures. It is well-suited for swimming pools, garage, or for creating shaded areas in front of the house. Translucent model filters natural light, it is perfect for laundry areas, or a relaxing corner that provides a tranquil, in the shade area while still allowing natural light to brighten the space.
D-Lite Wave
Sea Blue
Sea Blue
Crystal Green
Opal
Bronze
Pearl Green

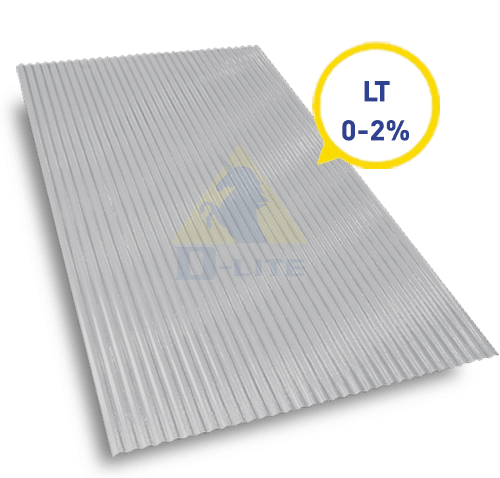

Alloy Grey

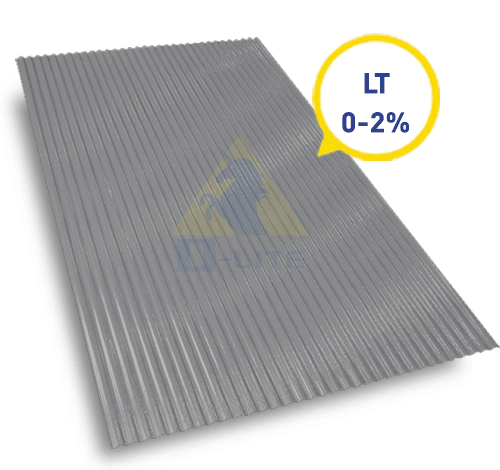

Dark Grey
The popular design with the translucent model allows natural light while effectively reducing heat and reflecting UV. Meanwhile, the opaque model protects various areas of your home from sunlight and heat by 100%.
Benefits
Over 99% of UV block
Available in both translucent and opaque models
Meets Thai Industrial Standards (TIS)
Provides brightness and
evenly light transmission
Enhances a modern style for the properties
Excellent water drainageand resists stains
Benefits
UV block over 99%
Available in both Translucent and Opaque
Meets Thai Industrial Standards (TIS)
Provides brightness and evenly light transmission
Enhances a modern style for the properties
Excellent water drainage and resists stains
Technical Specification
| Details of D-Lite Wave | |
|---|---|
| Width (Covered) | 1 Meter |
| Standard Sheet Length | 6 and 12 Meters |
| Thickness | 1.2 mm |
| Minimum Bending Radius | 1 m. |
| Weight | 1,800 g/m² |
| Slope Not Less Than | 5 Degrees |
| Maximum Projection Distance Not Exceeding | 10 cm |
| Maximum Purlin Spacing Not Exceeding | 75 cm |
| Total Rib Height Including Accessories | 9 mm |
Standard color
Crystal Green
Sea Blue
Opal
Bronze
Pearl Green
Alloy Grey
Dark Grey
Product Comparison
| FEATURE | D-Lite Wave | METAL SHEET | VINYL | SOLID POLYCARBONATE | SHINKOLITE |
|---|---|---|---|---|---|
| Standard color | 5 colors for Transparent 2 colors for Opaque |
Various colors | 3 colors | Various colors | Various colors |
| Light Distribution | Natural light distribution Create good atmosphere |
Opaque , dark | Opaque , dark | Light same as the color of sheet , Eye discomfort | Non light distribution Light similar the color of sheet |
| Purlin distance | 75 cm. saving the installation structure | 100 cm. | 50 cm for white and 30 cm for others colors , very loss structure | 120 cm. | 50 cm , lose purlin, The structure is not airy |
| Dirty Stain | Coated with a film to prevent dirty stains | Rusty | No protective film coating , color chages to yellow easily and difficult to clean | No protective film coating, heats up, see easily dirty stains, difficult to clean, and easy scratches | No protective film coating Easy scratches |
| “Expanding when different temperature 0-40oC 6 m. length” | 7.2 mm. | 2.88 mm. | 15.1 mm. 15.1 mm. High expansion, deformed sheet and leakage | – | 18 mm. |
| Warranty | 15 years warranty, clearly specified in documentation | Depends on the manufacturer | Not clearly specified and no supporting documentation | 5 years clarity warranty and 3 years broken warranty |
10 years warranty |
| Width | 1,000 mm. easy to install, save time |
700 mm. | 125 and 250 mm. Take a long time and difficult to install |
1,200 mm. | 1,380 mm. |
| Installation Accessories | Complete set of installation accessories, specifically designed for the product 1. D-Cap 2. Screw |
No installation accessories | The buyer must purchase separately the installation accessories for closing the left and right side. | Some installation accessories do not specify the source, short useful life | The installation accessories are not included, the buyers must purchase separately |
